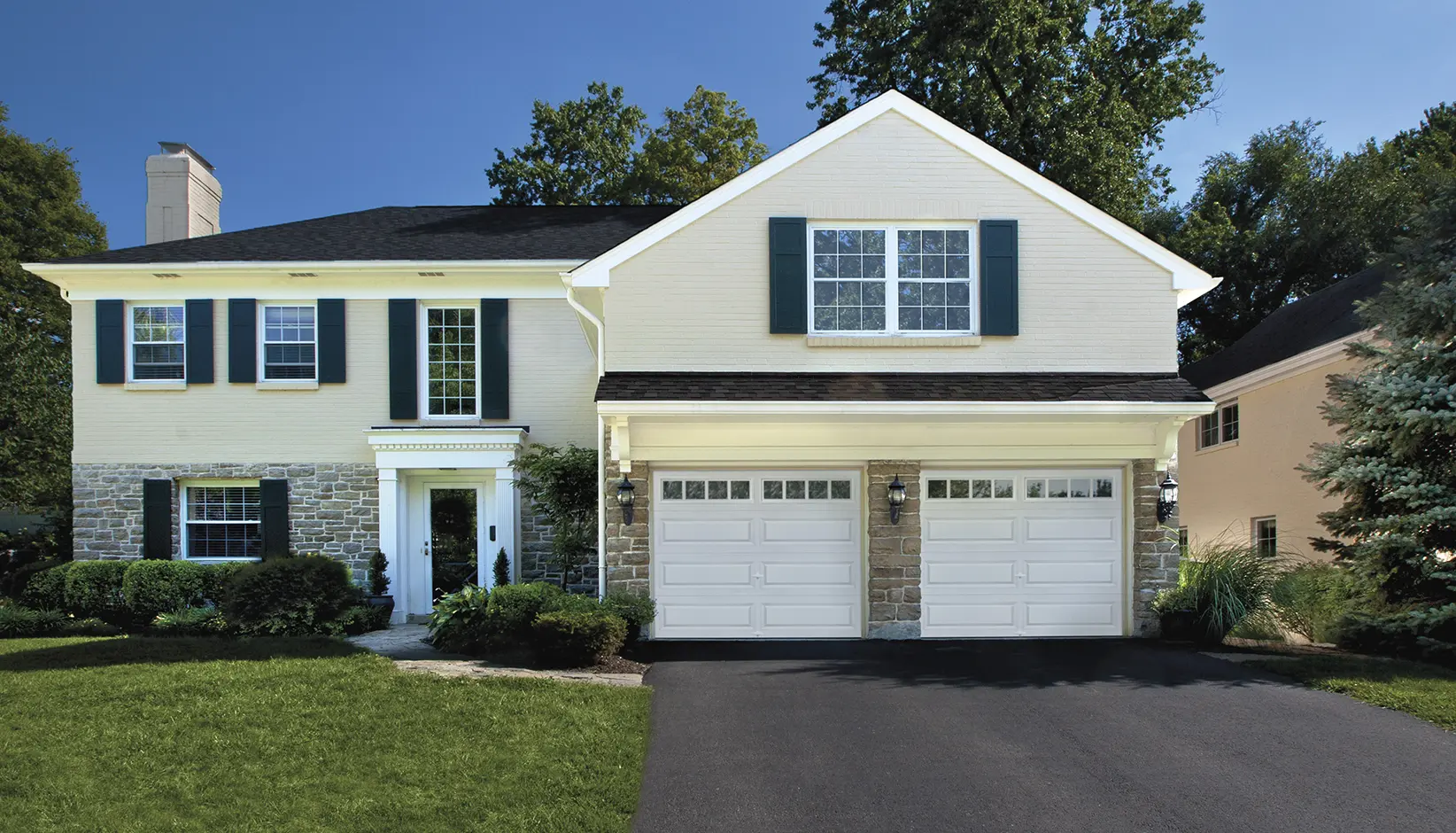

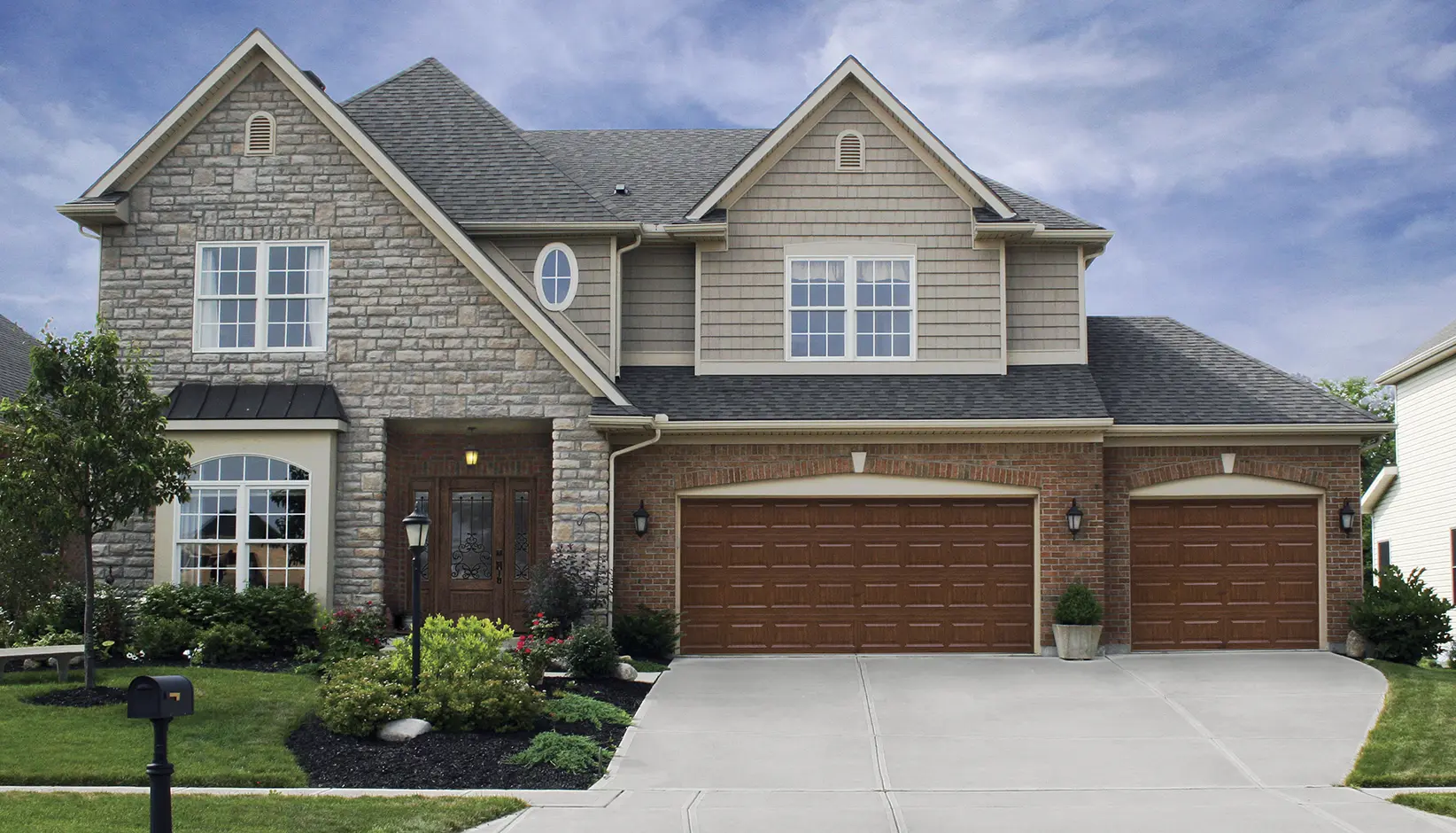

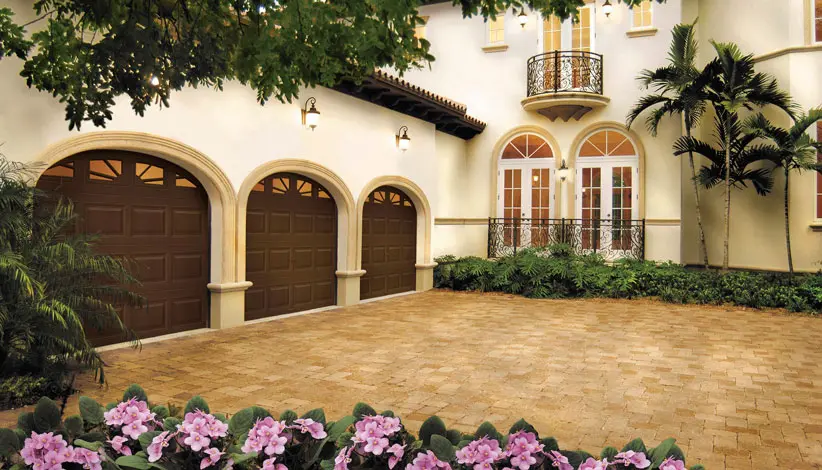

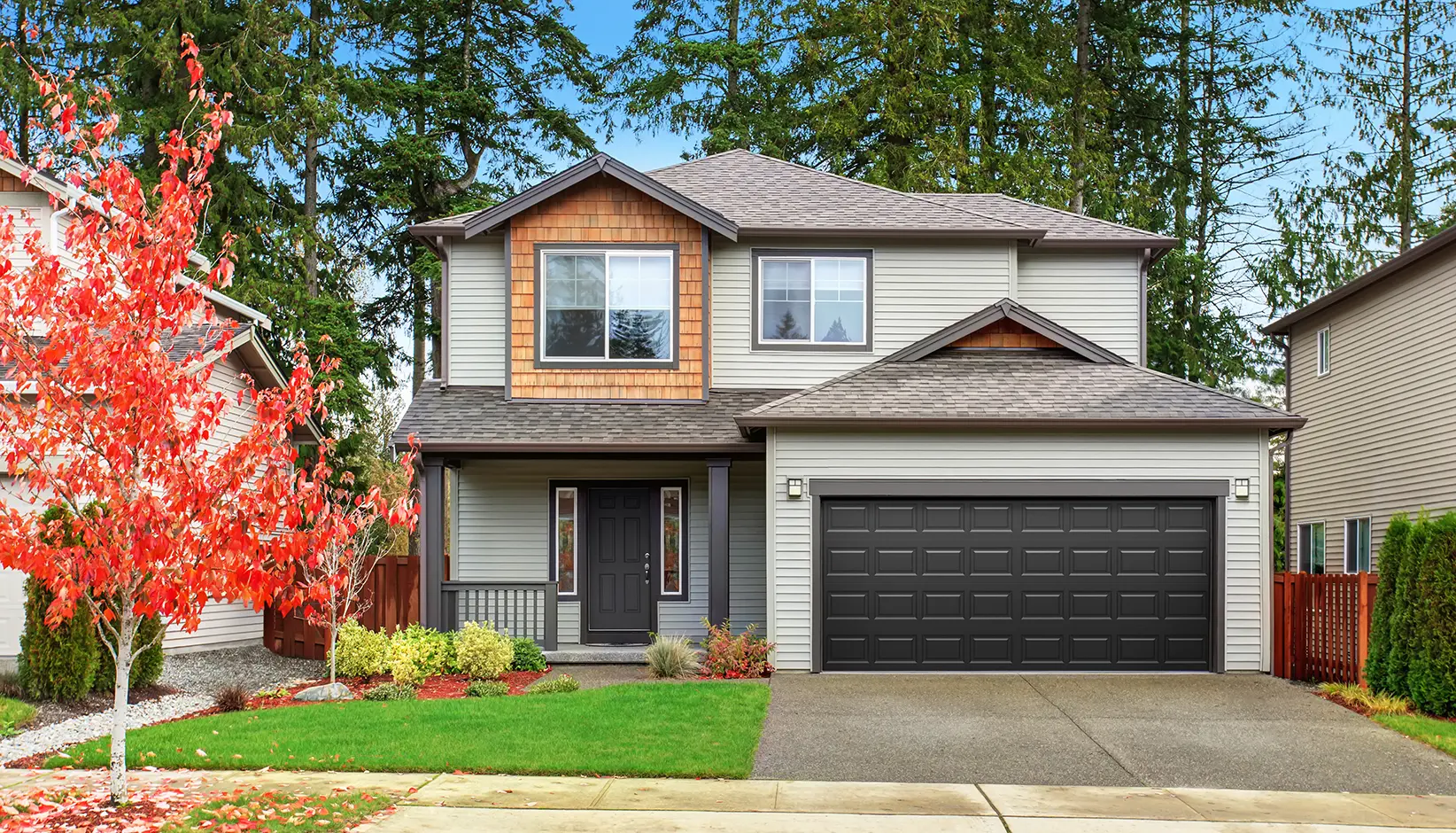

Classic Steel
Available in a wide range of looks and colors, our Classic Steel garage doors complement every home so there’s no sacrificing style for strength, durability and comfort.
Overview
Our Classic™ Steel collection provides the traditional raised-panel style garage door in a wide range of construction and design options, allowing you to take the time-tested, classic garage door look and make it your own. Our Classic™ garage doors can complement any home with the ability for homeowners to customize door sizes and choose from a variety of decorative top window inserts and specialty glass for natural light and privacy. These durable steel garage doors are available in 3, 2 or 1-layer construction with multiple insulation options.
3-, 2- or 1-Layer Construction
Available in 3, 2 or 1-layer construction options
Design Customization
Short and long panel steel garage doors with optional insulation and windows. Available in 14 colors including Ultra-Grain wood-look finishes. Color Blast® custom paint colors also offered in 1,500 shades.
Insulation
Insulation options include 2″ or 1-3/8″ Intellicore®polyurethane, 2″ or 1-3/8″ polystyrene or 1-5/16″ vinyl-backed polystyrene insulation available. Insulated door R-values from 6.5 to 18.4.
Door Reinforcement
WindCode® door reinforcement product available for high wind load applications.
Environmental Assurance
Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:
California SB 1013
Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
New Jersey A-5583/S-3919 – Greenhouse Gas Bill
Construction
Our durable Classic Steel doors come in 3, 2, or 1-layer construction with multiple insulation choices. Get the perfect blend of style and functionality for your garage today.
Steel
Intellicore® Polyurethane or Polystyrene Insulation
Steel
Steel
Polystyrene Insulation
Intellicore® Insulation
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability.
Additional Features
Rust-Prevention System: Steel skins are protected with a tough, multi-layer coating system, including hot-dipped galvanizing, a protective metal oxide pretreatment, then a baked-on primer and top coat.
Replaceable vinyl bottom weather seal in a rust-resistant aluminum retainer helps keep out air and water.
A patented Safe-T-Bracket® prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension
All Intellicore® insulated doors come standard with 10-ball nylon rollers and heavy-duty 14-gauge steel hinges.
Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
Window grilles are removable for easy cleaning.
Design Options
Raised panel garage door styles are what most people imagine when they think of a traditional garage door — a showcase of long and short panels, windows and numerous color options. Raised panel garage doors will allow you to draw attention to your home’s architecture with a focus on depth and symmetrical patterns.
Elegant Short
3-layer doors
Elegant Long
3-layer doors

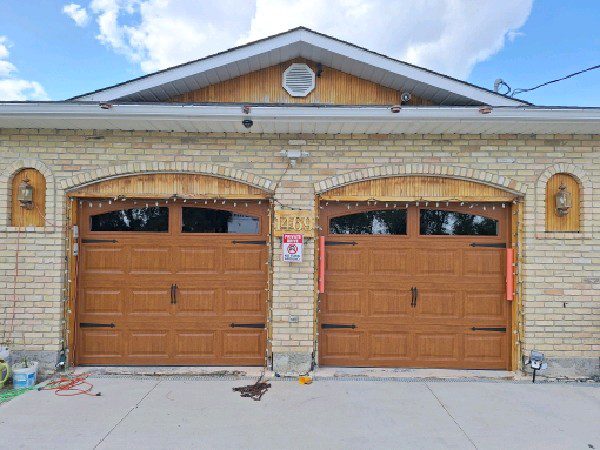

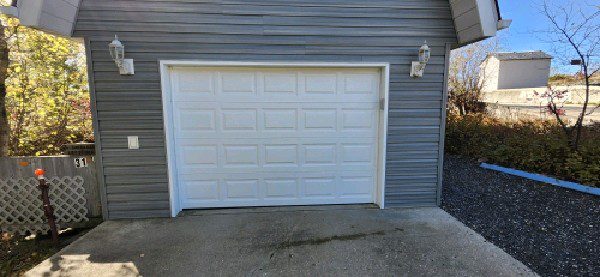

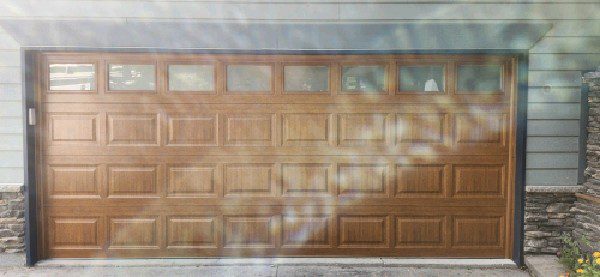

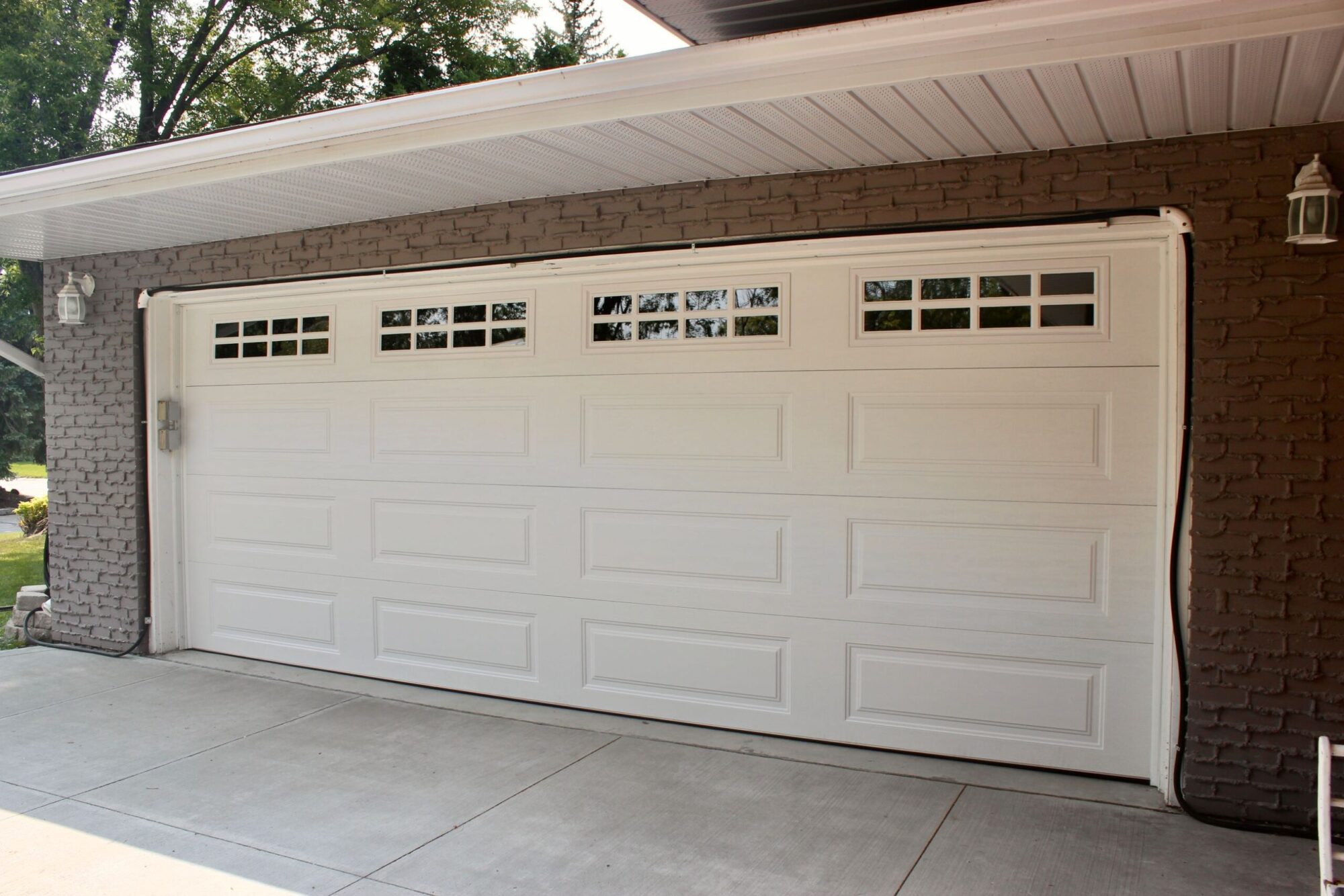

Traditional Short Panel
2 and 1-layer doors

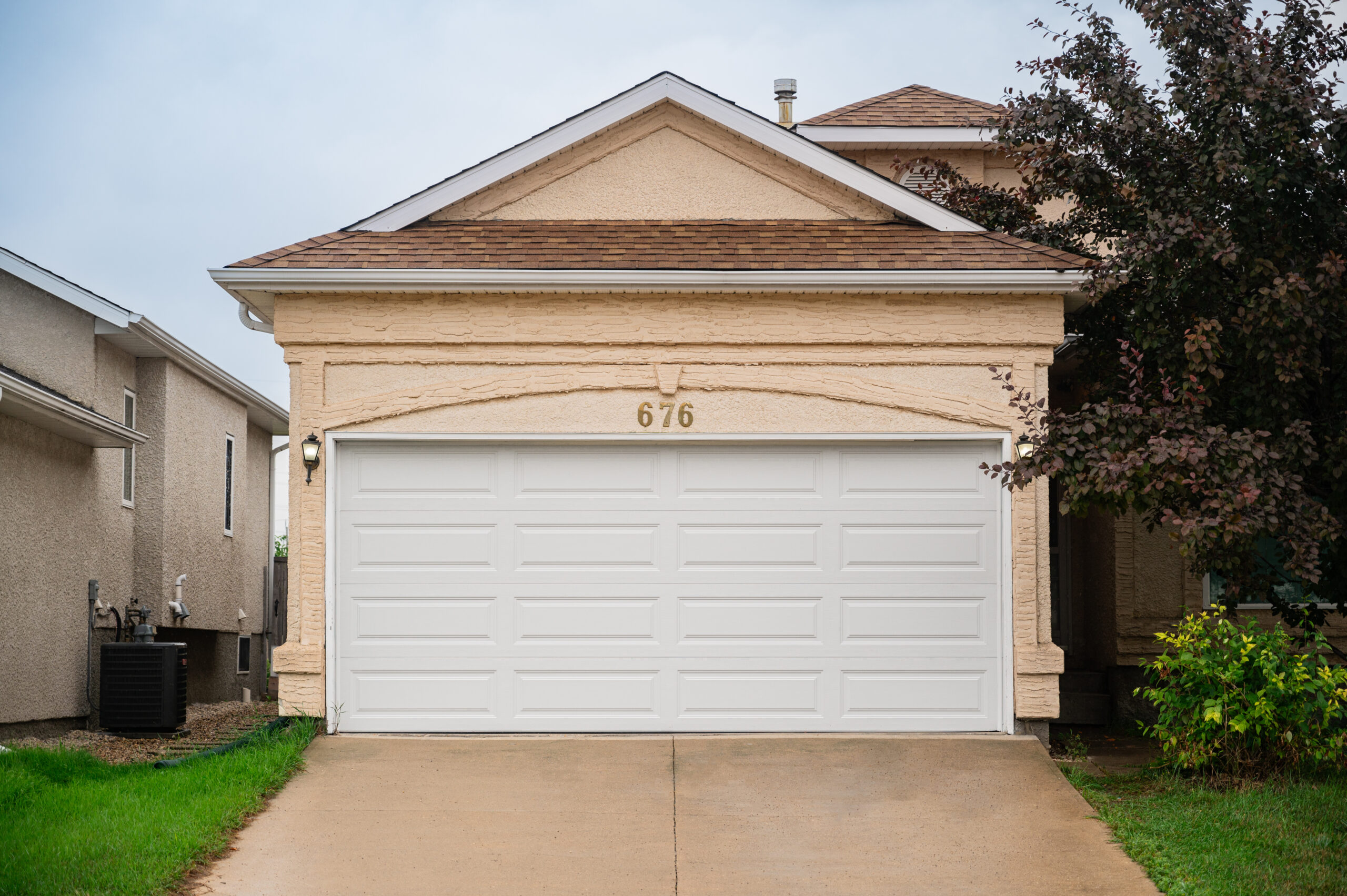

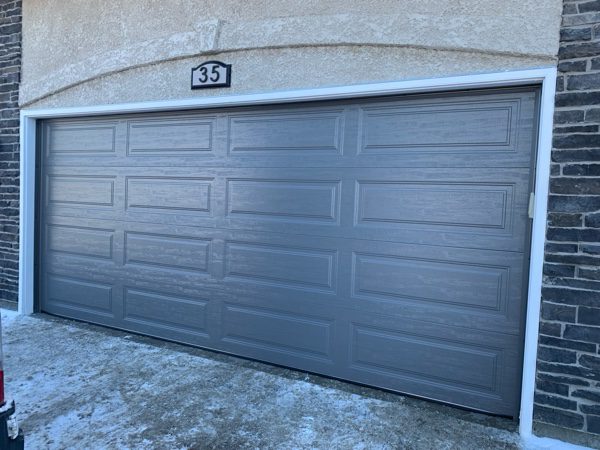

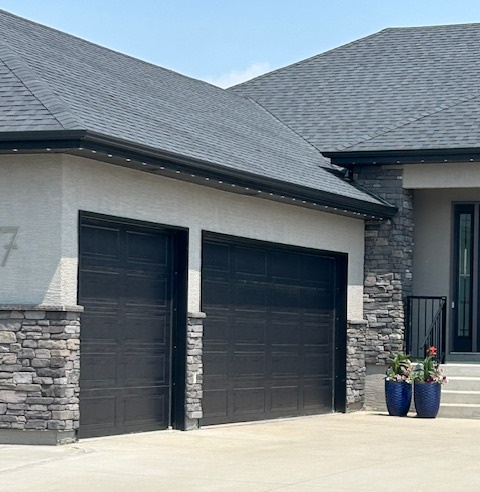

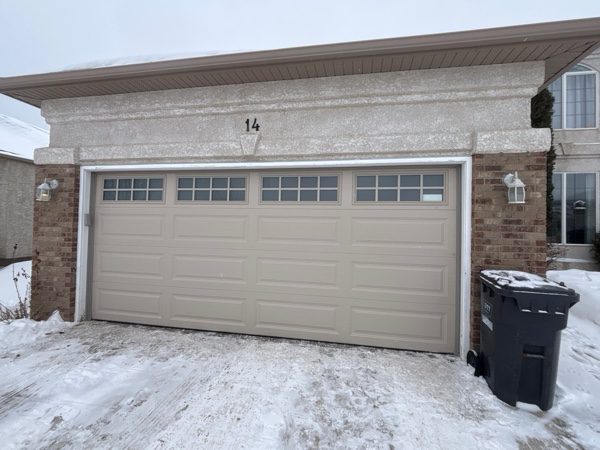

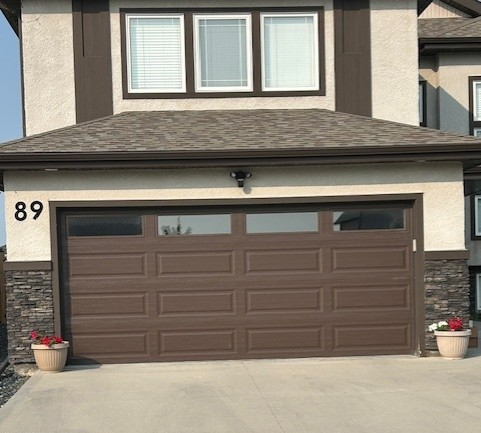

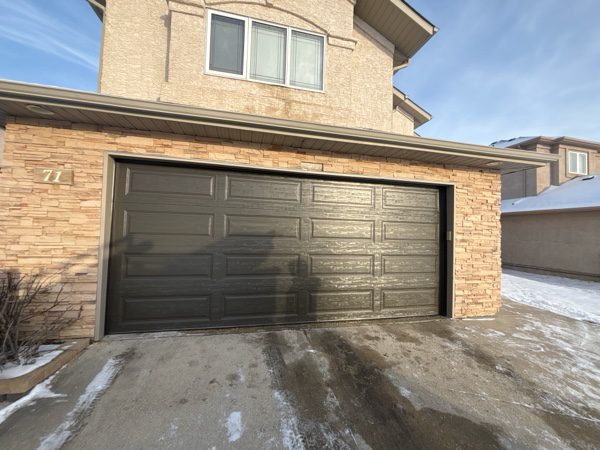

Traditional Long Panel
2 and 1-layer doors
Depending on door height, exact door appearance and number of sections may be different than illustrations above.
Solid Top Sections
Solid Elegant Short
Solid Elegant Long
Decorative Insert Series Windows
Colonial 509
Charleston 508
Stockton 612
Sunset 601
Charleston 608
Madison 611
Prairie 510
Madison ARCH613
Prairie 610
Sunset 501
Sunset 503
Sunset 603

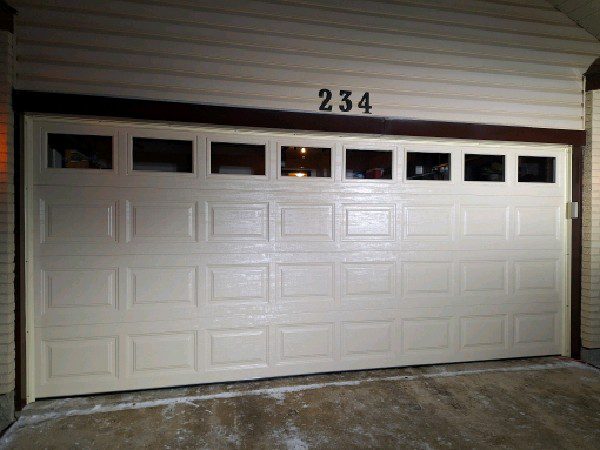

Plain Short
Plain Long
Architectural Series Windows
Plain Short
Short With Rectangular Grilles
Plain Long
Short With Squares Grilles
Long With Rectangular Grilles
Long With Square Grilles
ARCH1 Plain
ARCH1 With Vertical Grilles
ARCH1 With Grilles
ARCH2 Plain
ARCH2 With Grilles
ARCH2 With Vertical Grilles
Wrought Iron Short*
Wrought Iron Long*
Wrought Iron Arch*
Double Top Sections
Madison ARCH613
Madison ARCH613 (Double Door)
Sunset 502 (7′, 7’6″, 12′ widths only)
Sunset 502-Double Door
Sunset 503-Double Door
Sunset 504 (14′, 15′, 15’6″ widths only)
Sunset 505 (16′, 17′, 18′ widths only)
Sunset 506 (10′, 20′ widths only)
Sunset 603-Double Door
Sunset 605 (Double Door)
*Acrylic window designs.
**Available only on 2″ thick 3-Layer doors only.
***Sunset Windows not available on Ultra-Grain® doors.
Clear
Seeded
Rain
Frosted
Obscure
Midnight Gray
Standard Colors
Standard White
Almond
Sandtone
Bronze*
Chocolate
Mocha Brown*
Hunter Green*
Gray*
Charcoal*
Desert Tan
Premium Colors
Black*
Ultra-Grain Classic Medium Finish*
Ultra-Grain Classic Cherry Finish*
Ultra-Grain Classic Walnut Finish*
*Available on select models.
Brochures
Classic Premium Brochure
Clopay Classic™ Steel Premium garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® insulation is a proprietary polyurethane foam that is injected into our Premium doors, expanding to fill the entire structure. The result is a door with incredible strength and durability. Its dense insulation also produces a quieter door, and with one of the industry’s leading R-values of 18.4, it provides year-round comfort and improved energy efficiency.
Classic Steel Value Plus Brochure
Improve your home’s appearance and energy efficiency with a Clopay Value Plus insulated garage door. Available in 24 or 25 gauge steel with 1-5/16" polystyrene insulation, Value Plus models offer moderate insulating R-values, strength and security, as well as quiet operation and a beautiful appearance. Choose from two panel styles, many color options and a wide range of window options to create a door that fits your budget and enhances your home’s curb appeal.
Classic Steel Value Brochure
Improve your home’s appearance with a Clopay Classic™ Steel Value garage door. Available in 24 or 25 gauge steel with a durable 2" steel frame construction, Classic™ Steel Value models are designed for beautiful, long-lasting performance. Choose from multiple panel styles, many color options and a wide range of window options to create a door that fits your budget and enhances your home’s curb appeal.
Ultra-Grain Paint Option Brochure
Clopay’s Ultra-Grain® finish delivers the best of both worlds: the realistic look of natural wood with the low maintenance and energy efficiency benefits of insulated steel. But unlike real wood, it’s UV-resistant and impervious to moisture, so it won’t fade, rot, split, shrink or crack, saving you and the environment material, energy and resources necessary to maintain or replace door components.
Installation & Care
Residential Sectional Insulated Steel Doors
Installation instructions for our residential insulated steel garage doors
Residential Sectional 1-Layer And 2-Layer Doors
Installation Instructions for Residential Garage Doors
Steel Garage Doors Care and Maintenance
Steel Garage Doors Care and Maintenance
Installation Warranty
All of our Master Authorized and Authorized Dealers offer a minimum 1 Year installation Warranty on Clopay replacement doors.
