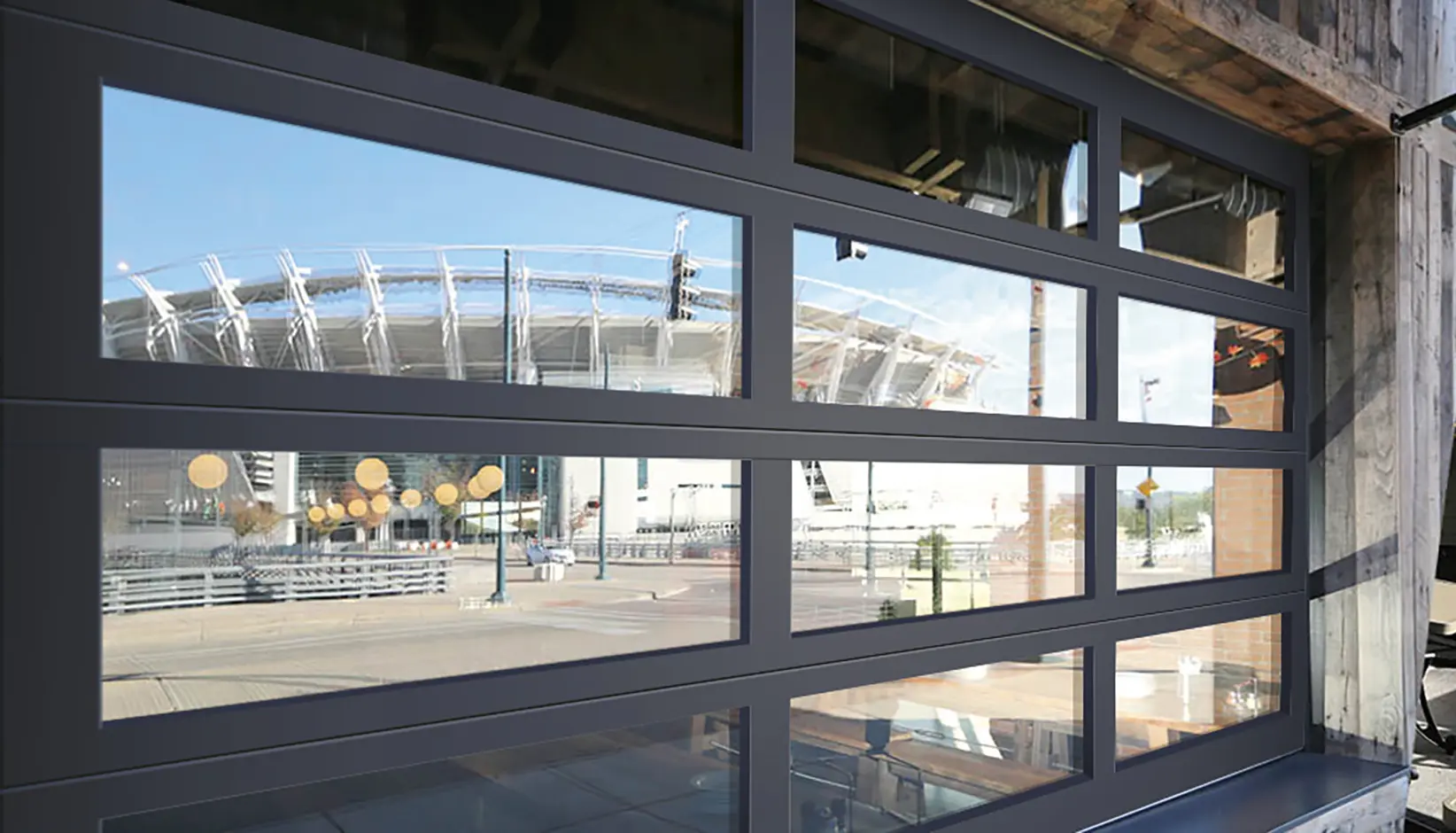

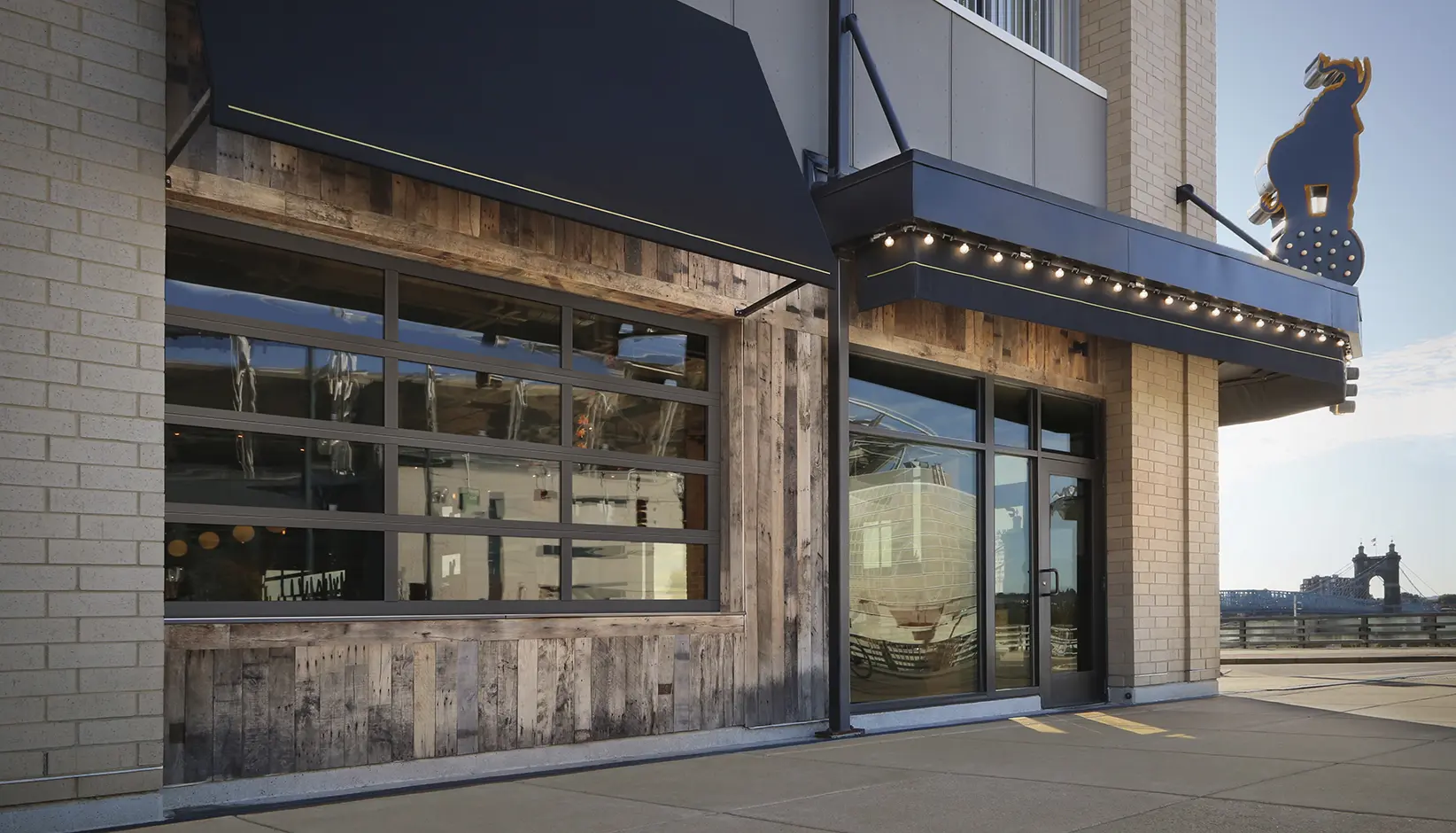

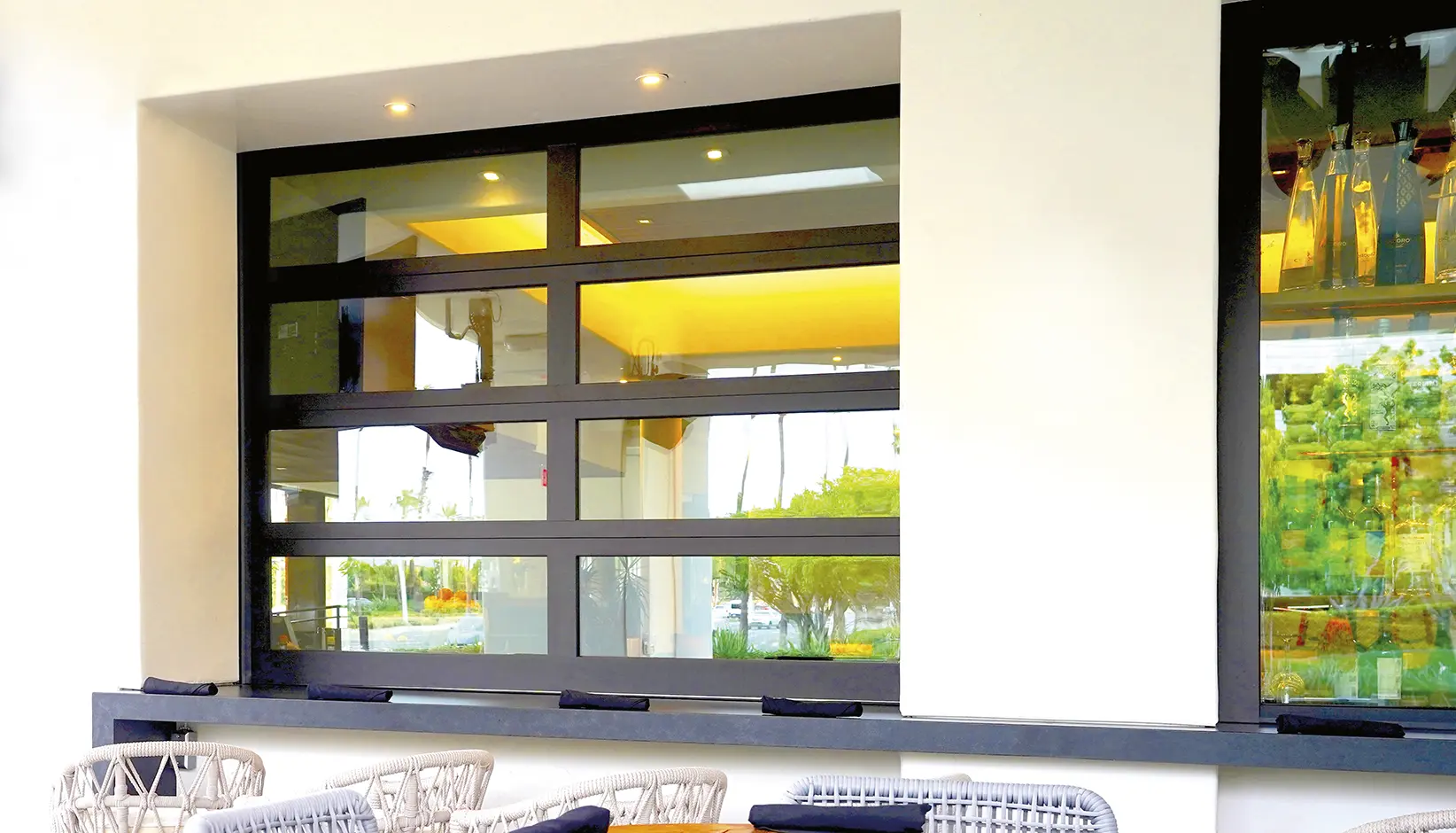

Vertistack Clear Door
VertiStack® Clear allows you to bring the outside in. These compact, vertically stacked sections take up minimal ceiling space so it won’t interfere with mechanical, electrical or plumbing fixtures.
The VertiStack Clear door features a unique construction with sections that stack above the opening, eliminating the need for overhead tracks. This allows for a clear ceiling and won’t conflict with mechanical, electrical or plumbing fixtures located in the ceiling. Designed with a clean, modern aesthetic, there are no hinges or exposed tracks or cables, and it is available with a variety of aluminum finishes and window materials.
Models
Model VS904 Standard Specifications
| Min Opening Width* | 4’6″ |
| Max Opening Width* | 20’0″ |
| Min Opening Height | 4’0″ |
| Max Opening Height | 14’0″ |
| Thickness | 2 1/8″ |
| Insulation | N/A |
Model VS904U Standard Specifications
| Min Opening Width* | 4’6″ |
| Max Opening Width* | 20’0″ |
| Min Opening Height | 4’0″ |
| Max Opening Height | 14’0″ |
| Thickness | 2 1/8″ |
| Insulation | Intellicore insulated rails & stiles |
*The door will always be 6” wider than the opening width, so door width range is 5’0 to 20’6”.
This product is available for commercial applications only.
For interior mount only.
Calculate Number of Panels and Sections
| Door Opening Width* | Number of Panels |
| 4’6″ – 8’8″ | 2 |
| 8’9″-12’8″ | 3 |
| 12’9″-15’8″ | 4 |
| 15’9″-19’8″ | 5 |
| 19’9″-20’0″ | 6 |
| Door Height | Number of Sections |
| 4’0″-5’8″ | 3 |
| 5’9″-7’0″ | 4 |
| 7’1″-8’4″ | 5 |
| 8’5″-9’8″ | 6 |
| 9’9″-11’2″ | 7 |
| 11’3″-12’8″ | 8 |
| 12’9″-14’0″ | 9 |
Product Approvals:
Florida Product Approval #FL42132
Options
Glass Panel Options
 FULL-VIEW (VS904/VS904U) |
Glazing Material Options
*Mirrored and laminate not available in 1/2″
Glass thickness available in 1/8″, 1/4″ and 1/2″. Tri-wall polycarbonate thickness available in 5/8″.
**Tempered glass options available
Color Options
*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
Safety Features
Strap Brake Safety System
Situated at the bottom section of the door and within the wall angles, this system is triggered when strap tension is lost. It releases the brake lever and engages the brake teeth to prevent the bottom and subsequent sections from falling.
Specs / Drawing
Contact us for Specs and Drawings.
Brochures
Brochure VS904
VertiStack™ Clear commercial doors have a clean, modern look and compact stacking sections that save ceiling space.
Brochure Commercial Idea Book
We take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.
Springs and Hardware
Commercial Hardware
Commercial door closures are manufactured with durable hardware to meet the demands of high-traffic environments. All of our doors include the standard hardware listed below. To view hardware upgrades, select the “Options” tab.
- 14-gauge hinges
- Commercial 10-ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for simplified operation
- Inside slide lock for improved security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
Commercial Track Applications
Commercial and industrial buildings often need to meet code requirements and ADA standards for space. Avoid wear and tear on overhead doors and mitigate safety risks by providing your client with the best overhead door track for their application. Clopay track solutions include standard lift, low headroom with a front or rear mount, follow roof pitch lift, full vertical lift, and combination options.
Commercial Torsion Springs
Commercial and industrial overhead garage doors vary in size, design, and operation. Your torsion spring ensures that your door withstands the test of time and maintains peak performance. Clopay torsion spring options can be designed for the industry standard of 10,000 cycles or can be upgraded to 25,000, 50,000, or 100,000 expected life cycles.
