Energy Series

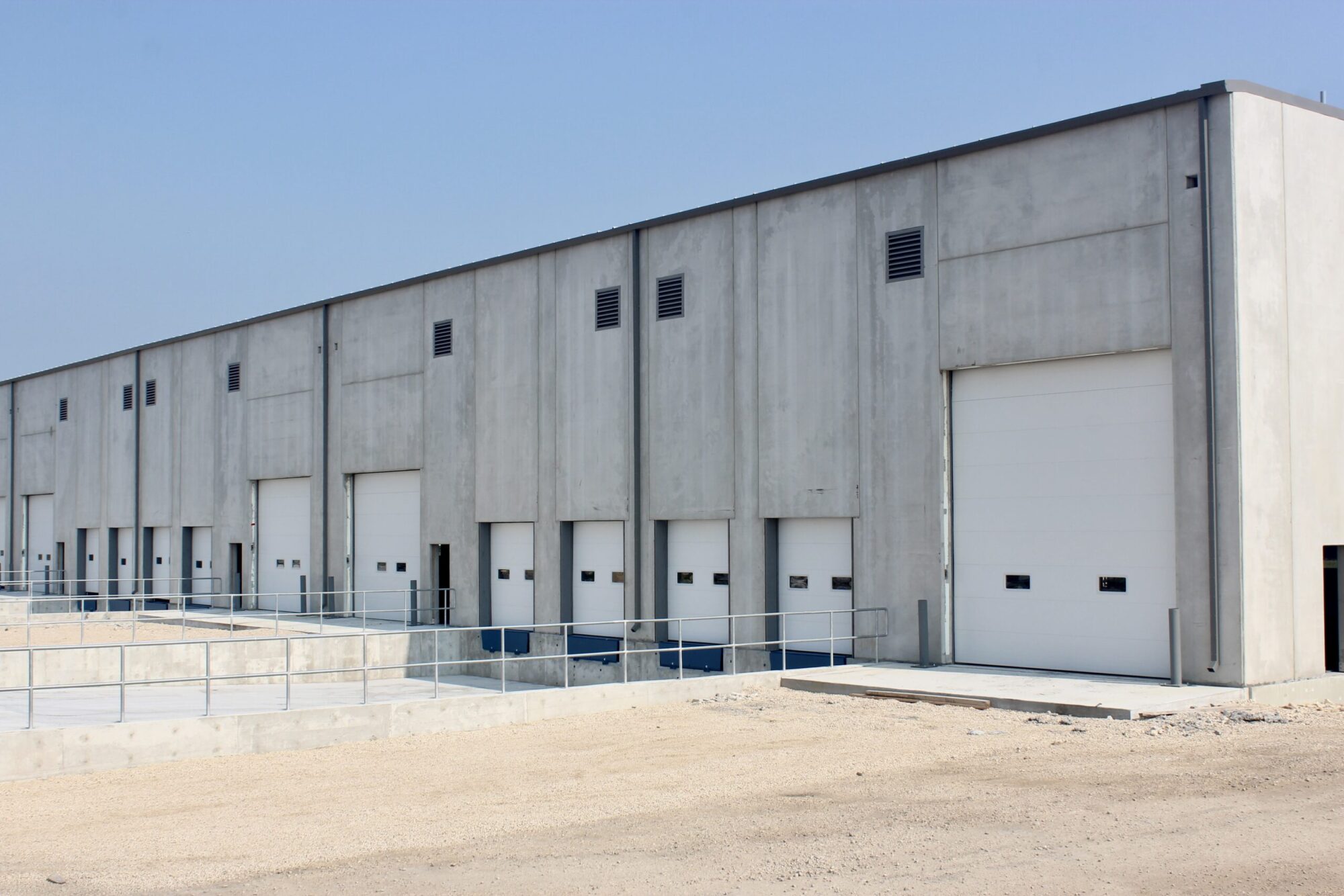

Our Energy Series doors help reduce heating and cooling costs. This door is ideal for warehouses, loading docks, industrial and agricultural facilities.

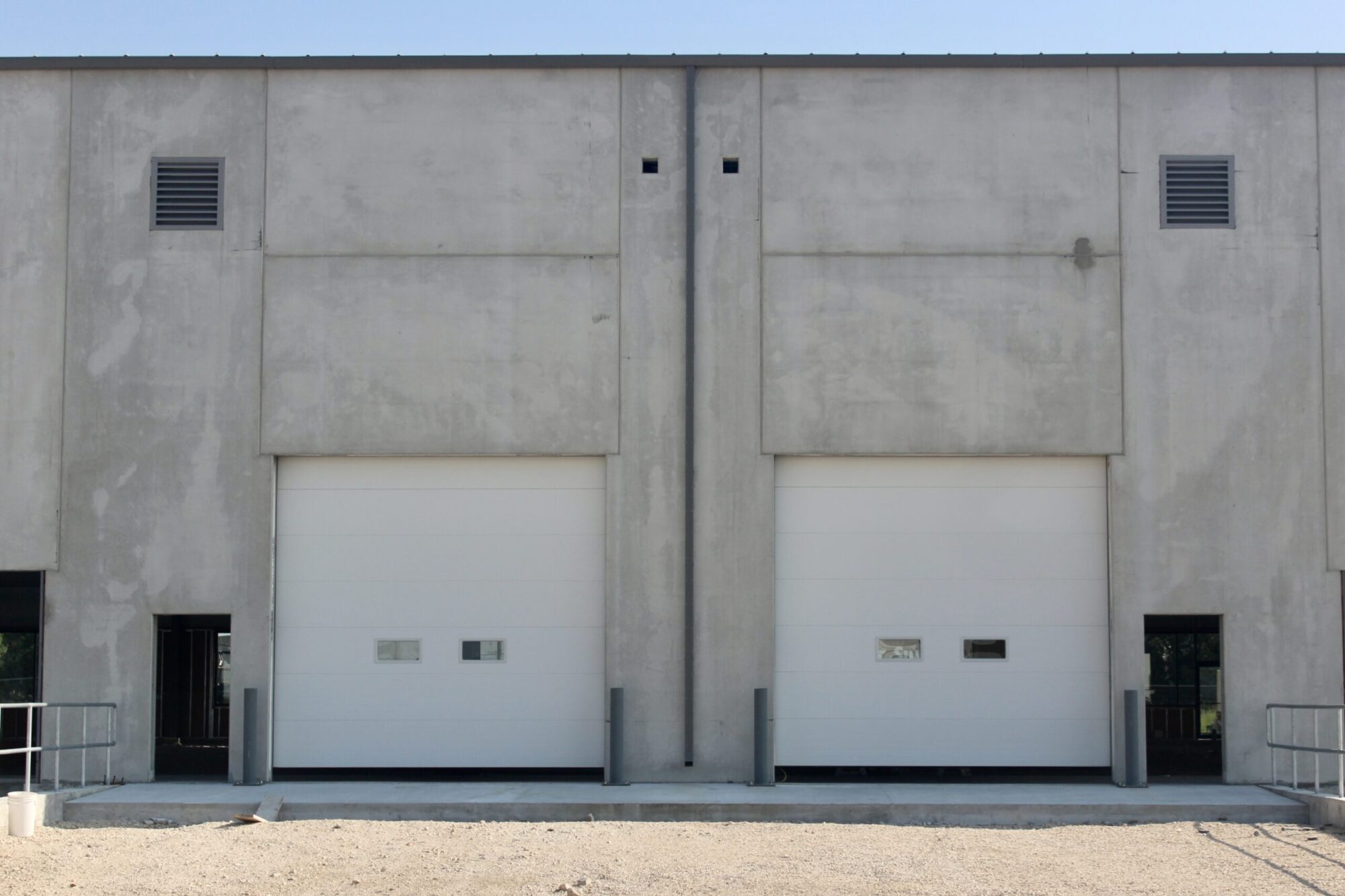

Clopay Energy Series overhead sectional doors provide durability, energy efficiency and multiple performance and design options. They feature polystyrene insulation which helps reduce heating and cooling costs with years of reliable service. These commercial doors offer stucco or woodgrain embossed steel exterior skins with flush, minor ribbed, or raised panel section designs. Ideal applications include warehouses, loading docks and industrial and agricultural facilities.
Models
| Model | Section Thickness | Emboss | Ext. Steel Pattern | Ext. Steel Gauge | R-Value* | U-Factor* | Thermal Break | Max Width✭ | Max Height✭ |
| 3220 | 2″ | Stucco | Flush | 20 Gauge | 9.1 | 0.24 | Thermally broken | 26’2″ | 20’0″ |
| 3213 | 2″ | Woodgrain | Raised panel | 24 Gauge | 9.1 | 0.24 | Thermally broken | 24’2″ | 18’0″ |
| 3211 | 2″ | Woodgrain | Flush | 24 Gauge | 9.1 | 0.24 | Thermally broken | 24’2″ | 18’0″ |
| 3200 | 2″ | Stucco | Minor ribbed | 24 Gauge | 9.1 | 0.24 | Thermally broken | 26’2″ | 20’0″ |
| 3155 | 1-3/8″ | Woodgrain | Flush panel | 27 Gauge | 6.5 | 0.3 | Thermally broken | 16’0″ | 16’0″ |
| 3154 | 1-3/8″ | Woodgrain | Raised Panel | 27 Gauge | 6.5 | 0.3 | Thermally broken | 16’0″ | 16’0″ |
| 3150 | 1-3/8″ | Stucco | Minor ribbed | 27 Gauge | 6.5 | 0.3 | Thermally broken | 16’0″ | 16’0″ |
*Calculated door section R-value is in accordance with DASMA TDS-163
*Tested door U-factor is in accordance with DASMA 105.
Options
Glass Panel Options

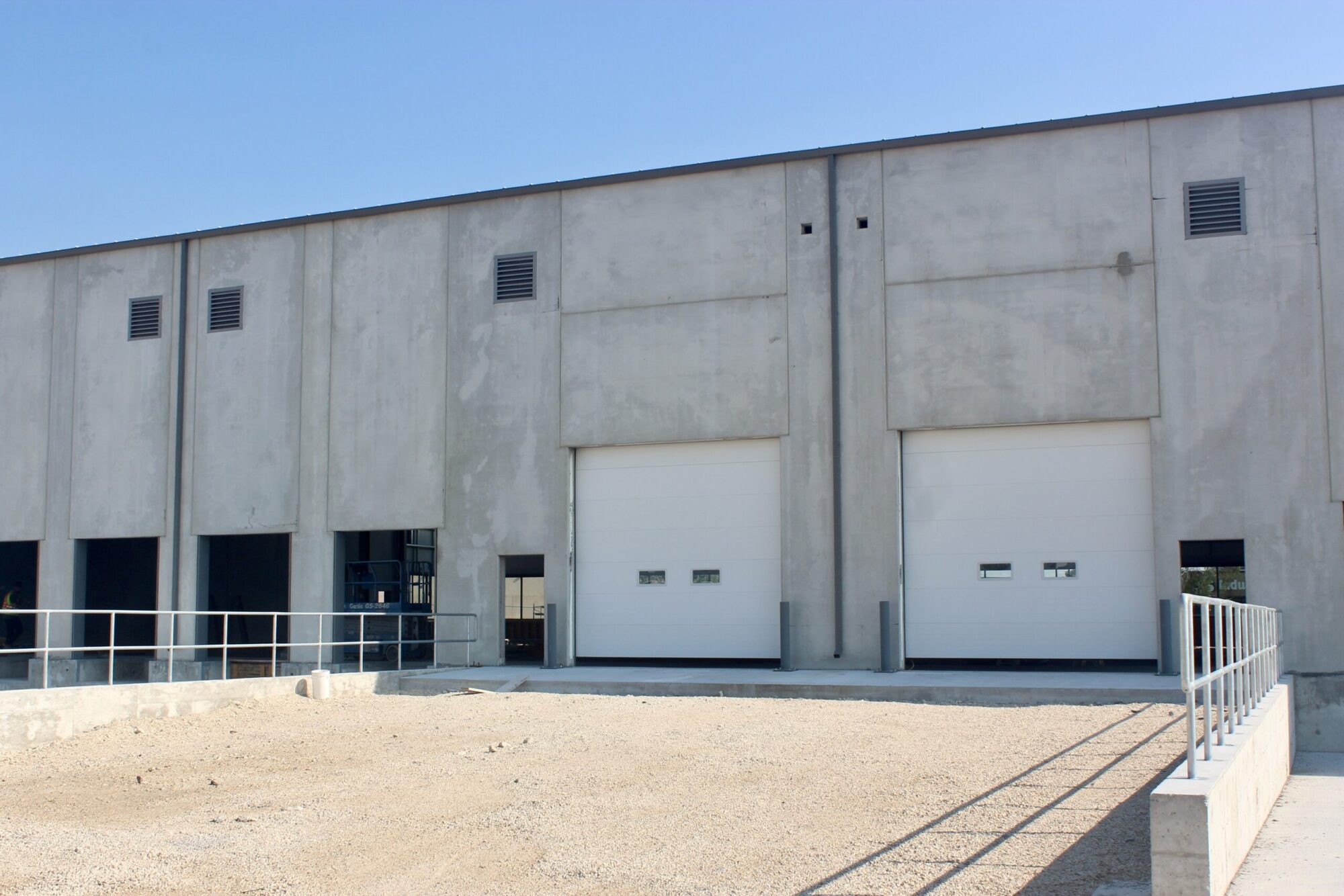

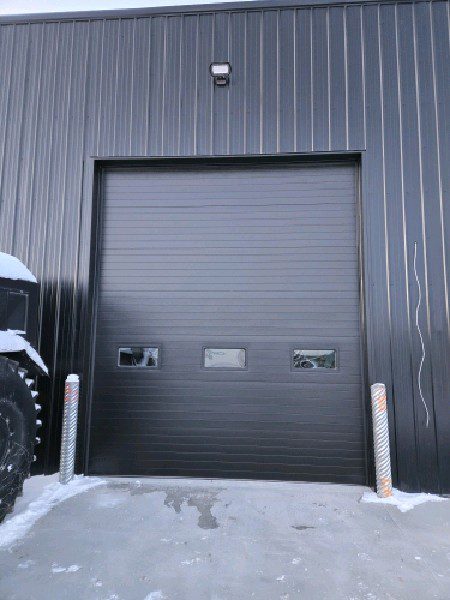

 24″ X 8″ (3715, 3717, 3718, 3720, 3724, 3730) |  24″ X 12″ (3715, 3717, 3718, 3720, 3724, 3730) |

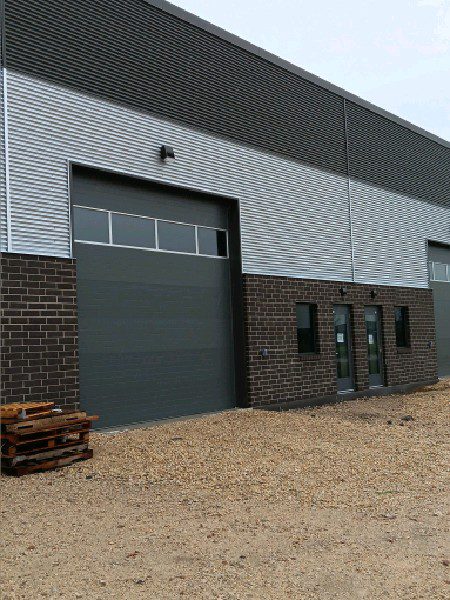

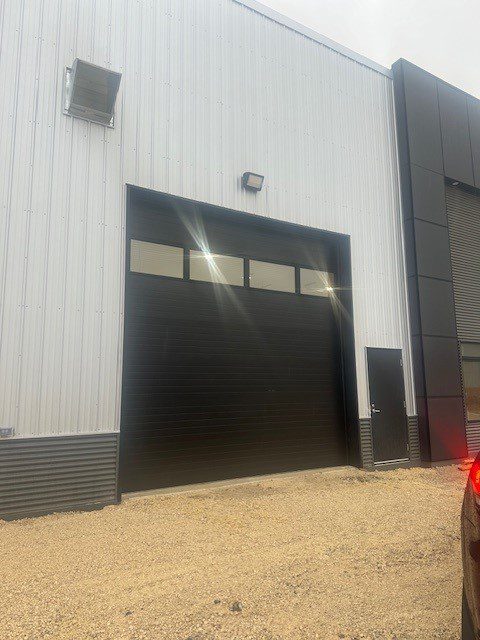

 Full-View* (3715, 3717, 3718, 3720, 3722, 3724) |  19-1/2″ x 12″ (3721, 3723) |
*Aluminum Intellicore polyurethane full-view section available
Note: Windows available in insulated or insulated tempered glass.
Glazing Material Options
*Mirrored and laminate not available in 1/2″
Glass thickness available in 1/8″, 1/4″ and 1/2″. Tri-wall polycarbonate thickness available in 1/2″. Low-E available on insulated glass.
Color Options
*Available on select models.
Performance Options Available
Specs / Drawing
Contact us for Specs and Drawings.
Brochures
Model 3154 & 3155 Brochure
Clopay Insulated steel sectional doors come in contemporary or traditional styles with a charming woodgrain embossed texture.
Model 3150 Brochure
The Model 3150 is an energy-efficient door system with an R-Value of 6.5 and a 27-gauge exterior steel skin, making it both durable and energy-efficient.
Model 3200-3211-3213 Brochure
Our Energy Series Models 3200, 3211, and 3233 doors come with bonded polystyrene insulation and are designed with a 24-gauge steel skin and R-Value 9.1 for energy efficiency and comfort.
Brochure Model 3220
Energy Series Model 3220 doors are rugged, energy-efficient doors designed for commercial and industrial facilities.
Extended 8-Year Hardware Warranty
Facilities rely on their openings to get work done. That’s why we offer an Extended 8-Year Warranty for demanding applications.
Springs and Hardware
Commercial Hardware
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.
- 14 gauge hinges
- Commercial 10 ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for easy operation
- Inside slide lock for increase security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
Commercial Track Applications
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.
Commercial Torsion Springs
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles.
