Energy Series with Intellicore
When energy efficiency and durability are required, choose Energy Series with Intellicore® for commercial and industrial facilities.

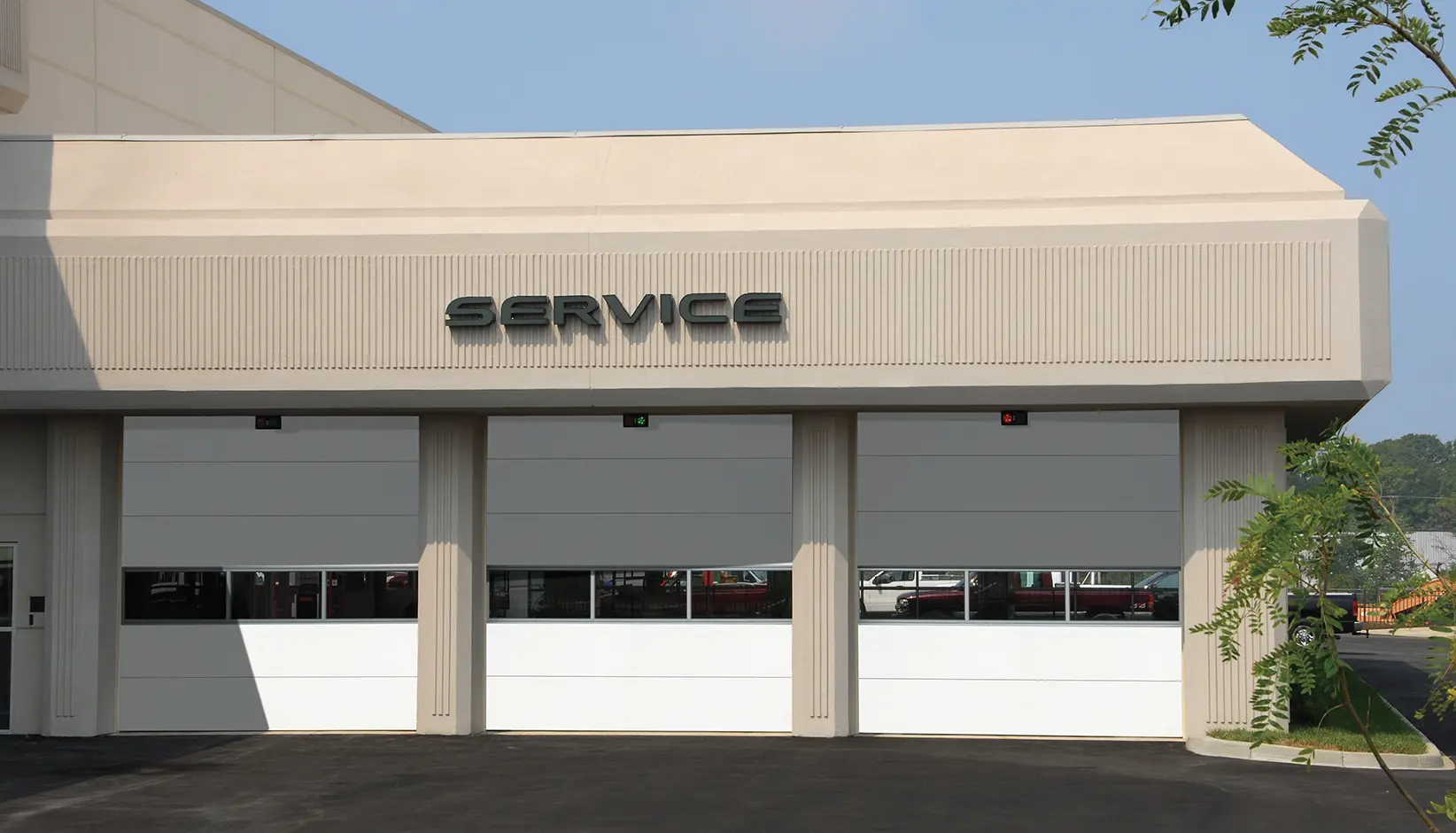

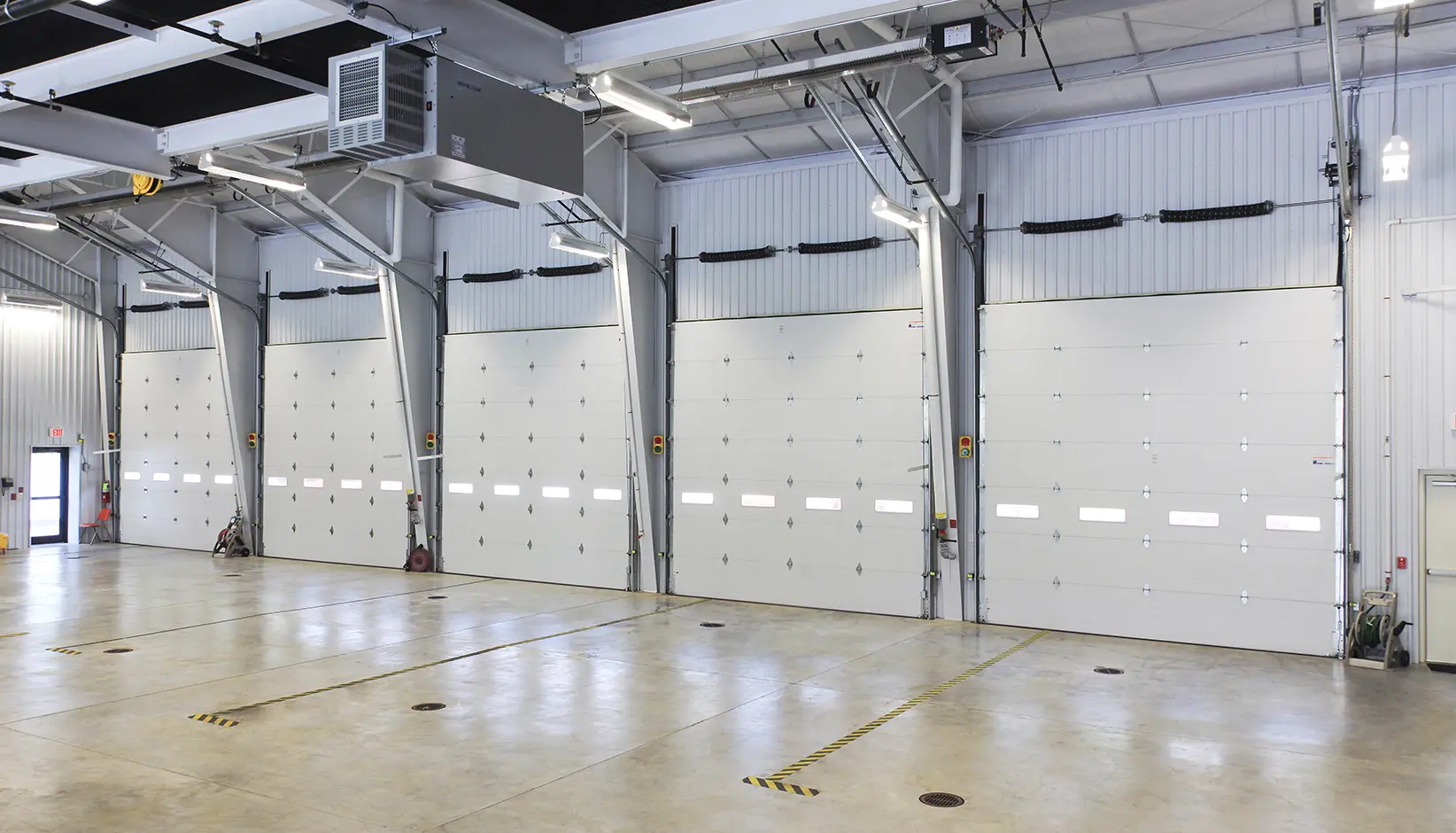

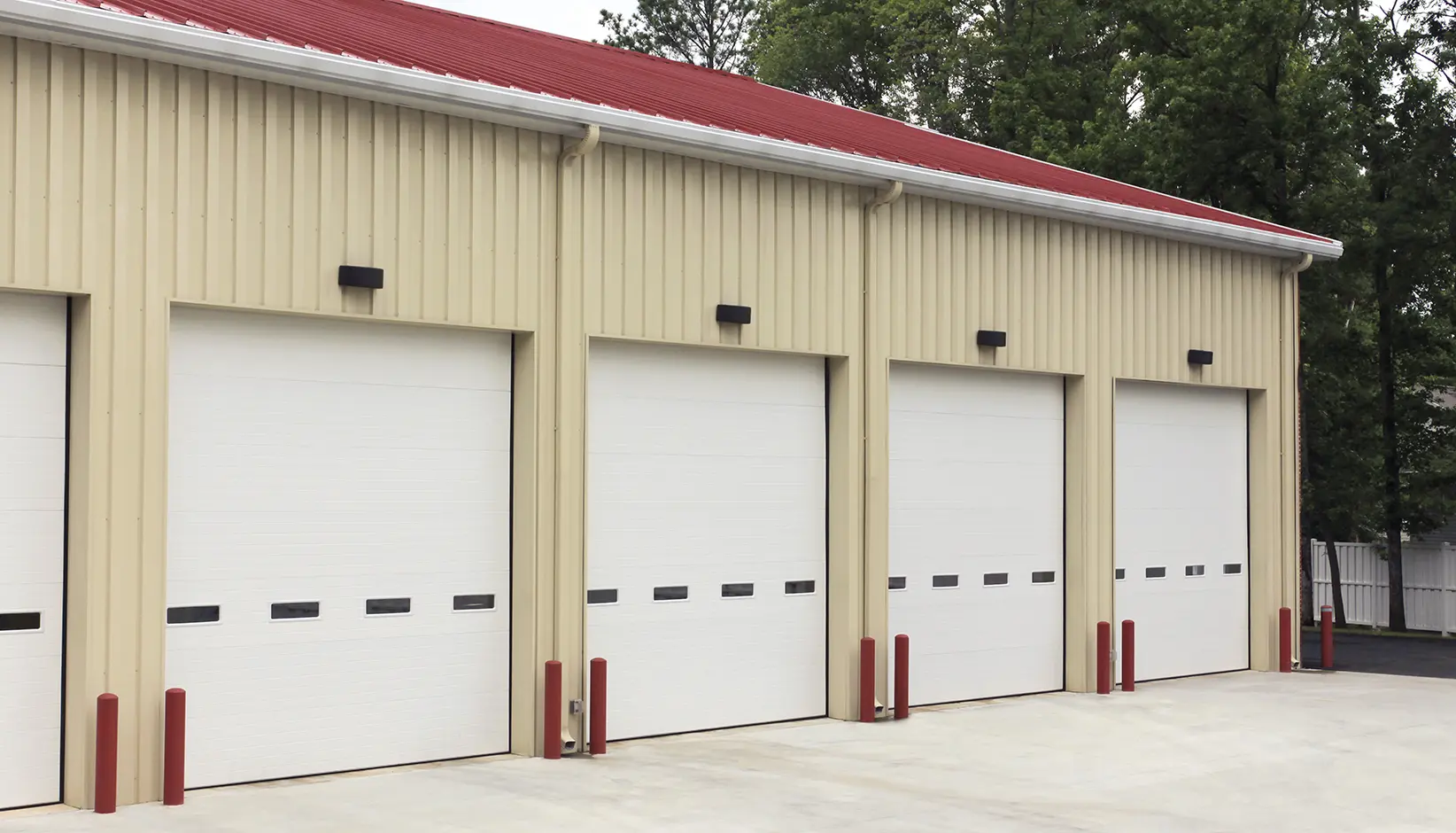

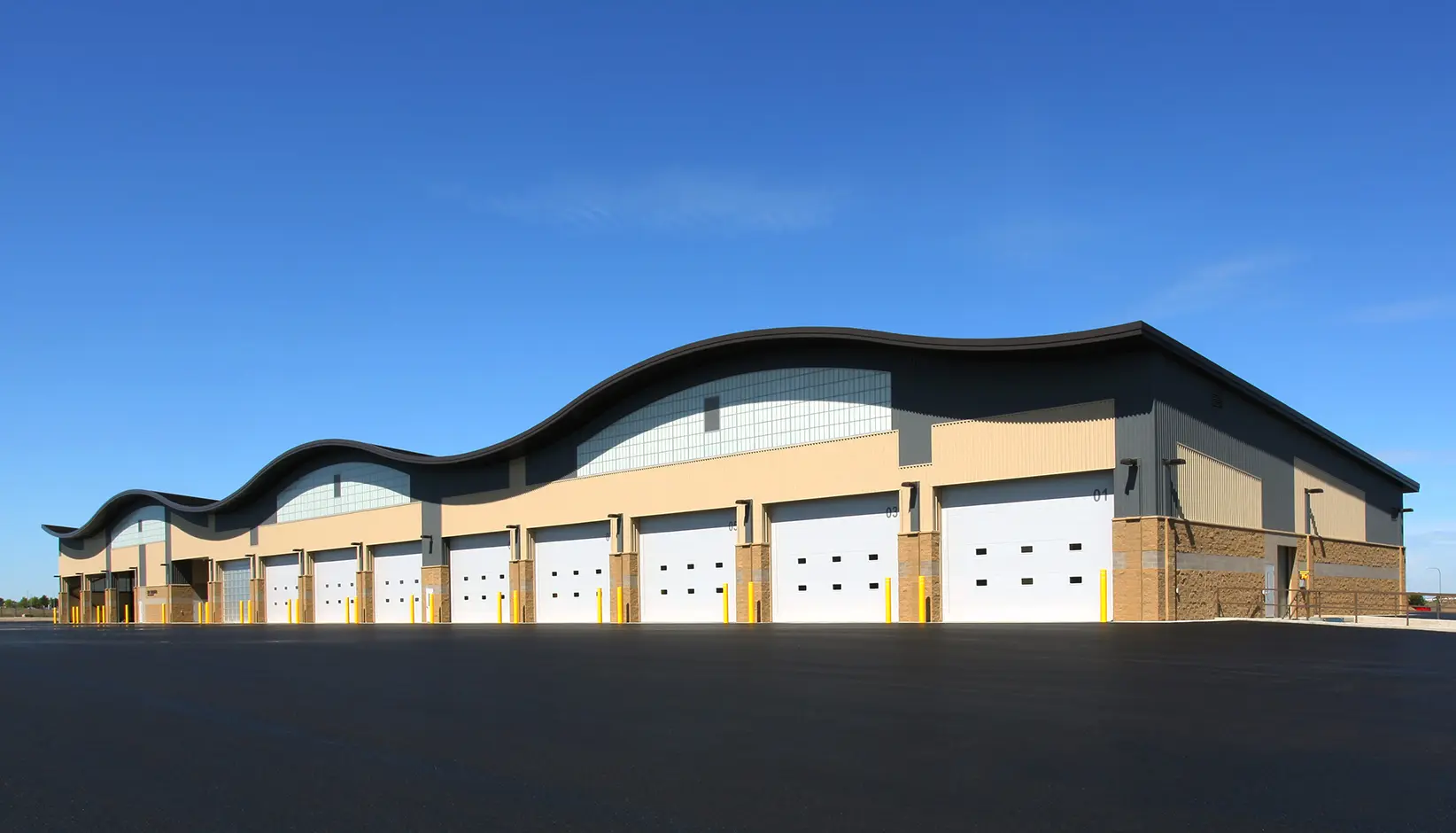

Clopay’s Intellicore overhead doors meet the needs of commercial buildings that require exceptional climate control. They feature polyurethane insulation which helps keep the building’s interior cooler in summer and warmer in winter. Our energy-efficient commercial doors include stucco or woodgrain embossed steel exteriors with flush, minor ribbed, or raised panel section designs. Ideal applications include warehouses, manufacturing plants, municipal buildings and retail stores.
Models
| Model | Thickness | Emboss | Exterior Steel | Pattern | R-Value* | U-Factor* | Std Max Width** | Std Max Height |
| 3730 | 3″ | Stucco | 27 Gauge | Minor Ribbed | 27.2 | 0.16 | 30’2″ | 20’0″ |
| 3724 | 2″ | Stucco | 24 Gauge | Minor Ribbed | 18.4 | 0.19 | 36’2″ | 20’0″ |
| 3723 | 2″ | Woodgrain | 27 Gauge | Raised Panel | 18.4 | 0.19 | 24’2″ | 18’0″ |
| 3722 | 2″ | Stucco | 20 Gauge | Flush | 18.4 | 0.19 | 32’2″ | 20’0″ |
| 3721 | 2″ | Woodgrain | 27 Gauge | Flush | 18.4 | 0.19 | 24’2″ | 18’0″ |
| 3720 | 2″ | Stucco | 27 Gauge | Minor Ribbed | 18.4 | 0.19 | 40’2″ | 20’0″ |
| 3717 | 1 3/4″ | Stucco | 27 Gauge | Minor Ribbed | 16.2 | 0.21 | 24’2″ | 20’0″ |
| 3718 | 1 3/4″ | Stucco | 27 Gauge | Flush | 16.2 | 0.21 | 24’2″ | 20’0″ |
| 3715 | 1 3/8″ | Stucco | 27 Gauge | Minor Ribbed | 12.9 | 0.21 | 18’2″ | 16’0″ |
Clopay’s proprietary polyurethane Intellicore® insulation
*Calculated door section R-value is in accordance with DASMA TDS-163
*Tested door U-factor is in accordance with DASMA 105.
**For sizes over 32’2″ wide consult factory for specific configuration requirements.
Calculate Number of Panels and Sections
| Door Opening Width* | Number of Panels |
| 4’6″ – 8’8″ | 2 |
| 8’9″-12’8″ | 3 |
| 12’9″-15’8″ | 4 |
| 15’9″-19’8″ | 5 |
| 19’9″-20’0″ | 6 |
| Door Height | Number of Sections |
| 4’0″-5’8″ | 3 |
| 5’9″-7’0″ | 4 |
| 7’1″-8’4″ | 5 |
| 8’5″-9’8″ | 6 |
| 9’9″-11’2″ | 7 |
| 11’3″-12’8″ | 8 |
| 12’9″-14’0″ | 9 |
Product Approvals:
Florida Product Approval #FL42132
Options
Glass Panel Options
 24″ X 8″ (3715, 3717, 3718, 3720, 3724, 3730) |  24″ X 12″ (3715, 3717, 3718, 3720, 3724, 3730) |
 Full-View* (3715, 3717, 3718, 3720, 3722, 3724) |  19-1/2″ x 12″ (3721, 3723) |
*Intellicore® polyurethane insulated full-view sections available in models 3720, 3722 and 3724.
Glazing Material Options
*Mirrored and laminate not available in 1/2″
Glass thickness available in 1/8″, 1/4″ and 1/2″. Tri-wall polycarbonate thickness available in 1/2″. Low-E available on insulated glass.
Color Options
Premium finishing options include:
- Custom Colors with Color Blast ® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing available on full-view sections only
Performance Options Available
Speciality Options Available
Carry-away, roll-away or swing-up mullions are available on select sizes.
Single section and double sections available on select sizes.
32″ wide x 80″ high, max 16’2″ wide section. Available in 2″ thick doors only.
The ControlGard® Chain Hoist features an integral braking system that only allows it to move when the user is actively pulling the chain, reducing the risk of expensive door damage and increasing the safety of users and those nearby.
Construction
Model 3730
| Panel Design: | 3″ thick stucco embossed ribbed steel exterior |
| Steel Gauge: | 27 gauge (.016″ min) exterior; 28 gauge (.016″ min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 27.2* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust prevention |
| Colors: | Snow mist white, commercial brown, ColorblastTM |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |
Model 3720 / 3724 / 3722
| Panel Design: | (3720 & 3724) 2″ thick stucco embossed steel exterior with minor ribbed pattern (3722) 2″ thick stucco embossed flush steel exterior |
| Steel Gauge: | (3720) 27 gauge (.016″ min) exterior; 28 gauge (.016″ min) interior (3724) 24 gauge (.022″ min) exterior; 28 gauge (.016″ min) interior (3722) 20 gauge (.034″ min) exterior; 28 gauge (.016″ min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 18.4* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | (3720) Standard white, glacier white, commercial tan, chocolate, mocha brown, gray, Trinar white, Trinar beige, charcoal and Color Blast™ (3724) Standard white, commercial tan, chocolate, black, gray, Trinar white and Colorblast™ (3722) Standard white, chocolate and Colorblast™ |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |
MODEL 3717 / 3718
| Panel Design: | (3717) 1 3/4″ thick stucco embossed steel exterior with minor ribbed pattern (3718) 1 3/4″ thick stucco embossed flush steel exterior |
| Steel Gauge: | 27 gauge (.016″ min) exterior; 28 gauge (.016″ min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 16.2* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | Pre-painted snow mist white, commercial brown, tan or gray. Optional Trinar white. |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |
MODEL 3715
| Panel Design: | 1 3/8″ thick stucco embossed steel with minor ribbing |
| Steel Gauge: | 27 gauge (.016″ min) exterior; 28 gauge (.016″ min) interior |
| Joint Design: | Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section |
| Thermal Conductivity: | R-value 12.9* for maximum energy efficiency |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | Pre-painted snow mist white or commercial brown, tan and gray |
| Limited Warranty: | 10-year paint / 10-year delamination / one-year material & workmanship |
*Calculated door section R-value is in accordance with DASMA TDS-163.
Specs / Drawing
Contact us for Specs and Drawings.
Brochures
Brochure Model 3715
Foamed in place Intellicore® polyurethane insulation provides strength, energy efficiency, and an R-value of 12.9.
Brochure Model 3717-3718
With an R-Value of 16.2, Models 3717 and 3718 are outfitted with our innovative Intellicore® polyurethane insulation to maximize energy efficiency.
Brochure Model 3720-3721-3723
These polyurethane insulated steel doors are durable, energy-efficient, and customizable with an R-Value of 18.4.
Brochure Model 3722
Model 3722 Polyurethane Insulated flush steel doors are designed for commercial and industrial facilities where demanding conditions require a rugged, energy-efficient door.
Brochure Model 3724
Our Model 3724 is a durable, versatile, and easy-to-maintain door for commercial and industrial use.
Brochure Model 3730
Clopay Model 3730 is for commercial and industrial facilities where ease of maintenance, versatility, durability and high R-value are important.
Brochure Commercial Idea Book
At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.
Springs and Hardware
Commercial Hardware
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.
- 14 gauge hinges
- Commercial 10 ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for easy operation
- Inside slide lock for increase security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
Commercial Track Applications
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.
Commercial Torsion Springs
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles.
