Architectural Series - Aluminum

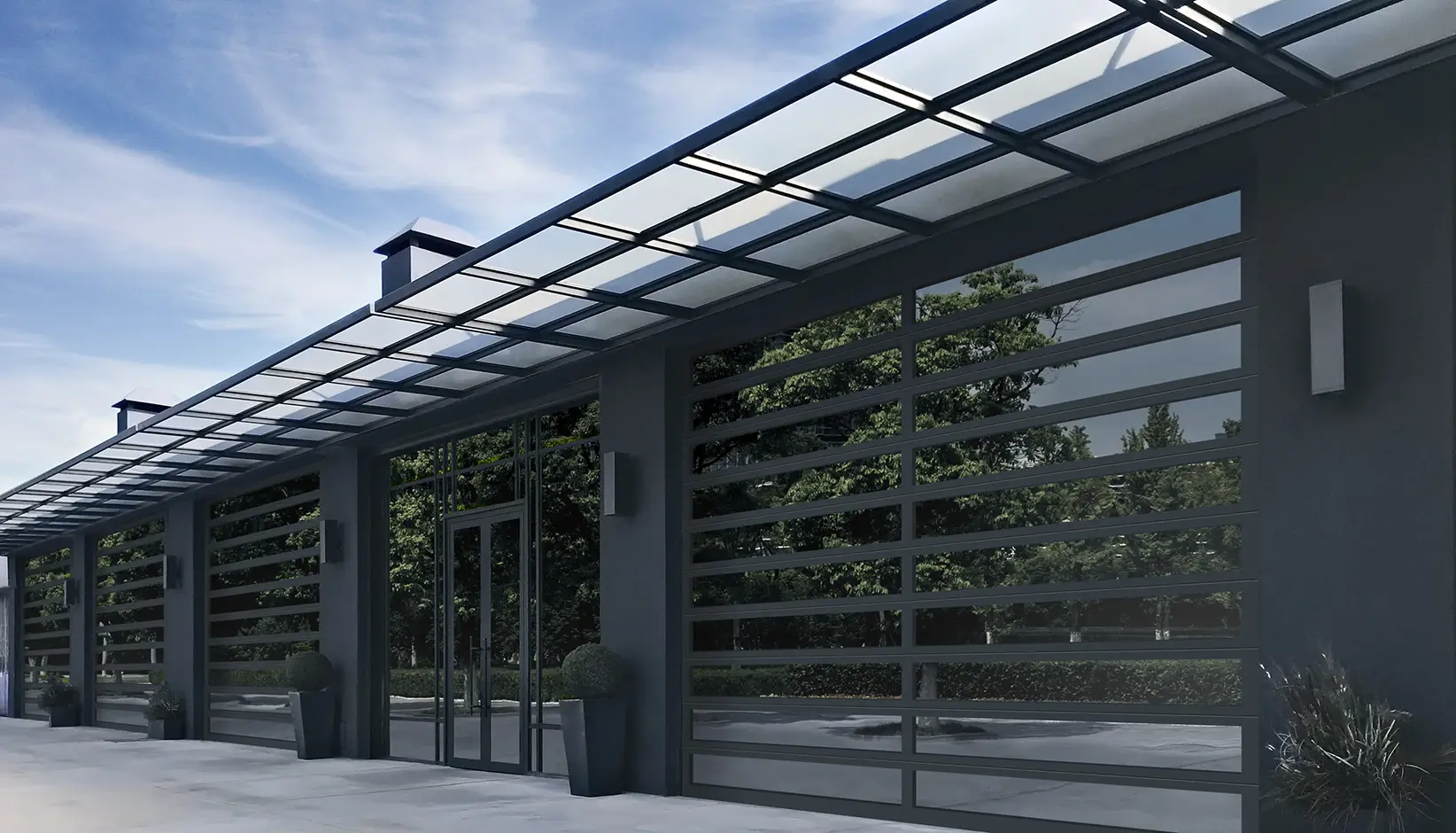

Our aluminum full-view doors offer a sleek design with fewer lines and angles providing an aesthetically pleasing appearance.
Models
| Model | Thickness | Spacing | R-Value | U-Factor | Max Width* | Max Height* |
|---|---|---|---|---|---|---|
| 904 | 2-1/8″ | Equal width & spacing | – | – | 24’2″ | 20’0″ |
| 904U*** | 2-1/8″ | Equal width & spacing | 3.8** | 0.73 | 20’2″ | 20’0″ |
| 906 | 2-1/8″ | Minimal stiles | – | – | 22’2″ | 16’0″ |
| 906U*** | 2-1/8″ | Minimal stiles | – | – | 20’2″ | 16’0″ |
*Maximum Width and Height values listed are Standard sizing.
**With insulated low-e argon filled glass
***With Clopay’s proprietary polyurethane Intellicore insulation.
Tested door U-factor is in accordance with DASMA 105
Options
Glass Panel Options
 Full-View (904) |  Solid Aluminum (904) |
 Full-View (906) |
Glazing Material Options (904/904U)
*Mirrored and laminate not available in 1/2″
Glass options above only available on full-view sections. Glass thickness available in 1/8″, 1/4″ and 1/2″. Tri-wall polygal thickness available in 5/8″. Low-E available on insulated glass.
**Available in 904W8/904UW8 only
Glazing Material Options (906/906U)
*Acrylic thickness is 1/8″, black only available in 1/4″ thickness.
Hardcoated Acrylic options available
Low E glass available
Glass thickness available in 1/8″, 1/4″ and 1/2″
Color Options
*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
Custom powder coat, Color Blast®, and anodized finishes available.
Premium finishing options include:
Construction
Model 904/904U, 906/906U | |
|---|---|
| Exterior Skin Pattern | : Recessed aluminum panel |
| Exterior Aluminum Gauge | : 6063-T5 Aluminum |
| Rails and Stiles | : Polyurethane Insulated (904U, 906U only) |
| Colors | : Clear Aluminum (Anodized), Standard White, Bronze (Painted), Chocolate (Painted), Bronze (Anodized), Dark Bronze (Anodized) |
| Limited Warranty | : 5-Year Finish / 1-Year Material and Workmanship / 1-Year Hardware |
Specs / Drawing
Contact us for Specs and Drawings.
Brochures
Brochure Model 906-906U
Model 906 aluminum full-view doors boast a sleek panel design with fewer lines and angles.
904 Brochure
Model 904 and 904U’s design-forward look is enhanced with well-balanced stile profiles and contemporary lines.
Brochure Commercial Idea Book
We take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.
Springs and Hardware
Commercial Hardware
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware, take a look at Options.
- 14 gauge hinges
- Commercial 10 ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for easy operation
- Inside slide lock for increase security
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
Commercial Track Applications
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.
Commercial Torsion Springs
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles.
