Rolling Counter Door

Home / Commercial / Roll Shutters / Rolling Counter Door

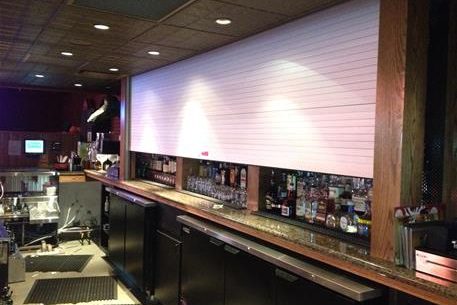

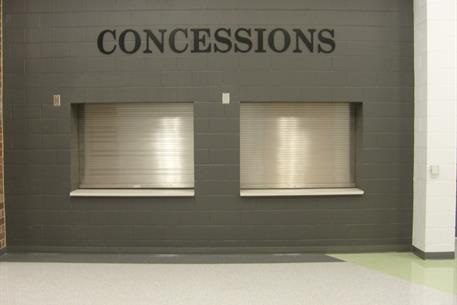

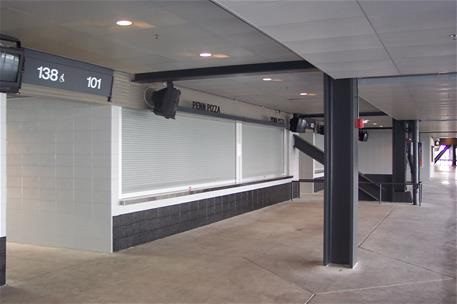

Commonly utilized in cafeterias, concession stands and ticket booths, our Rolling Counter Doors provide accessibility and security in interior and exterior finished wall openings. These doors are manufactured with smaller, more aesthetically pleasing door components – such as the guides, slats, brackets and hood – than traditional rolling doors, so they require minimal headroom and can be custom-fit into a wide variety of openings.

The roll up counter door can be configured to withstand the full range of specific wind load requirements including missile impact ratings.

Overview

Sizes

Standard construction up to 21’ wide, 10’ high (limit of 180 square feet)
Wind load construction of up to 14′ wide, 10′ high (limit of 140 square feet)
For openings that fall outside of the standard construction, please contact us.

Usage

Our Rolling Counter Shutters are constructed for daily use.

If your opening requires compliance to fire or building codes, visit our Fire Rated Counter Fire Shutters.

Materials and Finishes

.040” thick clear anodized aluminum
- Medium, dark or black anodized finish
22 gauge galvanized steel
- Exclusive GalvaNex™ finish in Gray, Tan or White
22 gauge 304 series stainless steel
- #4 finish

*Finish/gauge availability varies. Consult your sales representative for detailed finish/gauge availability.

Operations

Our Rolling Counter Shutters can open by motor, hand-crank, or push-up operation, depending on size and/or weight.

Tubular Motors: Concealed tubular motors provide a solution for strict dimensional limitations around the header or aesthetic requirements that lend themselves to its smaller, compact design.

EverGard Tube Motor: The EverGard Tube Motor operator is ideal for openings with tight clearances around the coil area, when you need to neatly conceal the drive components without adding a bulky motor cover and for door control during a loss of power.

Options

Sensing Edge

Sensing Edge – Entrapment Protection Device

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille ensuring a secure seal without requiring you to overset the bottom door limit. The sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance. With flexible 1″ sealing fins, our sensing edges provide maximum protection while withstanding the elements.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

On-the-go Sensing Edge Repair Kit now available. Contact the Service Department at 1-800-390-8590

To determine the best entrapment device for your application, check out our Entrapment Device Protection Overview document.

Aesthetics

Omni Powder Coat Finish

Our environmentally friendly Omni Powder Coat helps you to match your rolling steel door to select Clopay sectional doors.

Omni Powder Coat is available in:

Commercial Tan
Commercial Gray
Charcoal
Standard White
Chocolate Brown
Black

AtmoShield™ Powder Coating

Textured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

SpectraShield™ Powder Coating

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Vinyl Graphics

Add durable, full-color images to your curtains and hoods. Great for school logos and turning unused door space into profitable sponsorship opportunities in stadiums, amusement parks and retail stores.

Vision Windows

Improve aesthetics and visibility with one- or two-way windows incorporated in the curtain.

Performance Upgrades

LED Visual Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Magic Switch

A touchless activation device designed to open and close doors with the wave of a hand. It’s compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. The Magic Switch is easy to retrofit in an existing application and features a clean, stainless steel face plate.

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Safety and Protection

SafetyGard UL325 Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Static Wind Load

Can be configured to withstand the full range of specific wind load requirements including missile impact ratings.

Unique Design Solutions

Integral Frame and Sill

Our Rolling Counter Shutters with Integral Frame and Sill are designed with reduced coil, bracket and header size (8″ minimum) to fit tight clearances.

Countertops

Countertops are available for a complete counter shutter closure solution, and can be UL rated.

Mullions

There are multiple mullion options – corner, fixed and removable.

Sloping or Irregular Openings

Our special bottom bar designs can address these conditions.

SmartSync Wireless Safety Edge Kit

SmartSync™ Wireless Safety Edge Kit & Wireless Remote Control

The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening.

The Smartsync™ Wireless Remote allows wireless control of your door or grille. This heavy-duty remote comes equipped with an anti-shock design and is compatible with most motor-operated doors, grilles or counter doors.*
*Not compatible with NEMA 7/9 operators
